H-Series: Conservatively Innovative Engine for a Long Service Life

Datasheet

H-Series: Conservatively Innovative Engine for a Long Service Life

Datasheet

3H50T

  • Power
    Up to 18.4 kW
  • Torque
    130 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
  • Power
    up to 25 hp
  • Torque
    95.9 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
No exhaust aftertreatment required such as EGR, DOC or DPF

3H50T OPU

  • Power
    Up to 18.4 kW
  • Torque
    130 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
  • Power
    up to 25 hp
  • Torque
    95.9 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
No exhaust aftertreatment required such as EGR, DOC or DPF

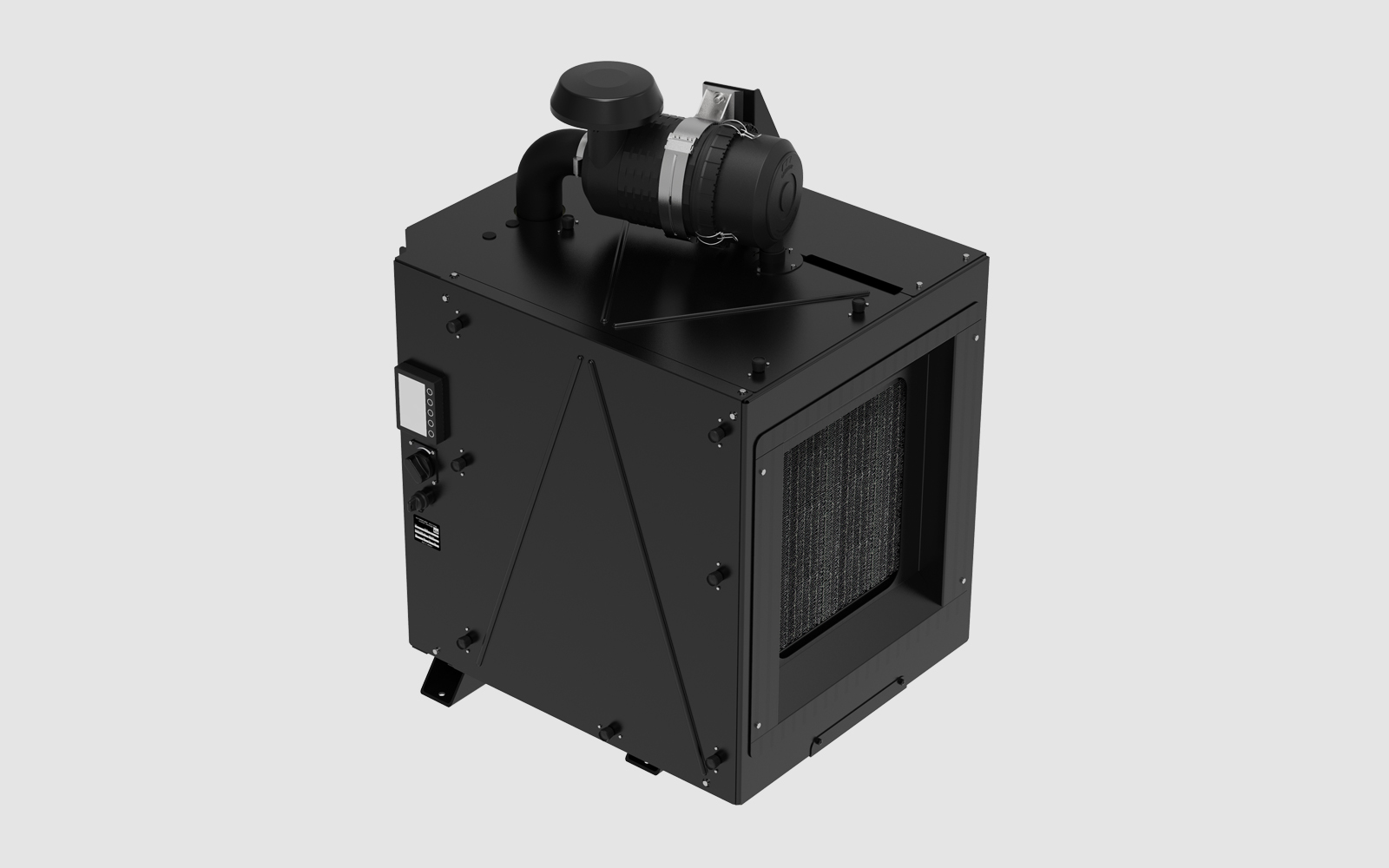

3H50T Silent Pack

  • Power
    18.41 - 30.5 kW
  • Torque
    130 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3- cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
  • Power
    up to 25 hp
  • Torque
    95.9 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3- cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU stage V, EPA Tier 4/CARB for exhaust certificate
No exhaust aftertreatment required such as EGR, DOC or DPF

3H50TI

  • Power
    22.3 - 48.2 kW
  • Torque
    202 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    25 - 65 hp
  • Torque
    149 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF. Designed for less regulated markets

3H50TI OPU

  • Power
    22.3 - 48.2 kW
  • Torque
    202 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    25 - 65 hp
  • Torque
    149 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF. Designed for less regulated markets

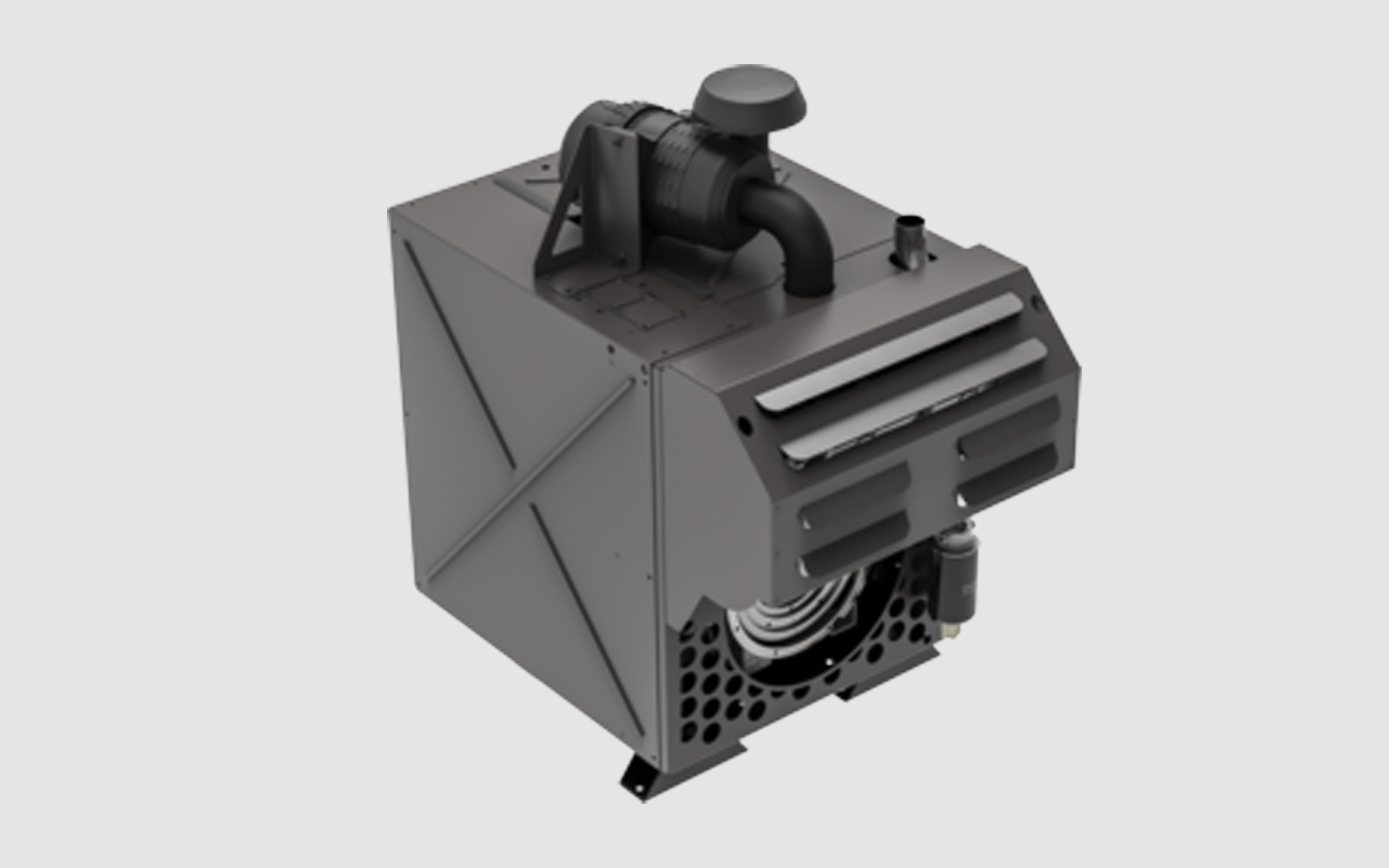

3H50TI Silent Pack

  • Power
    18.6 - 48.5 kW
  • Torque
    202 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    25 - 65 hp
  • Torque
    149 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF. Designed for less regulated markets

3H50TIC

  • Power
    22.3 - 43.6 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooled

3H50TIC OPU

  • Power
    22.3 - 43.6 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooled

3H50TIC Silent Pack

  • Power
    17.8 - 43.9 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIB
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIB
Exhaust-gas turbocharger with intercooler

3H50TICD

  • Power
    22.6 - 43.7 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Diesel particulate filter (DPF)

3H50TICD OPU

  • Power
    22.6 - 43.7 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Diesel particulate filter (DPF)

3H50TICD Silent Pack

  • Power
    18.6 - 43.9 kW
  • Torque
    203 Nm
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
  • Power
    25 - 59 hp
  • Torque
    150 lb-ft
  • Speed
    1500-2800 RPM
  • Type
    Water cooled 3-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooler

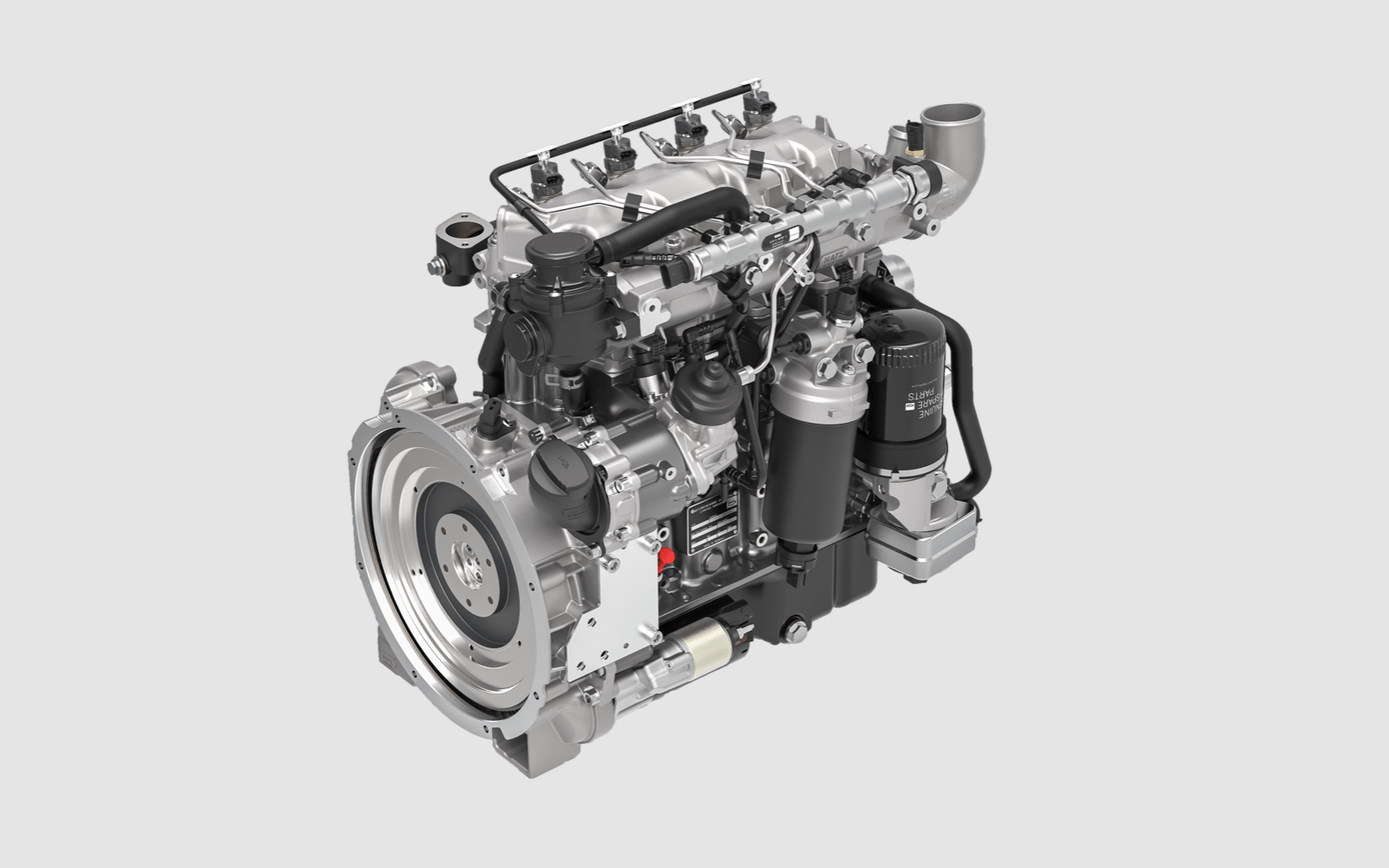

4H50N

  • Power
    18.4 kW
  • Torque
    122 Nm
  • Speed
    1800 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine. With extended service intervals.
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    24.7 hp
  • Torque
    90 lb-ft
  • Speed
    1800 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine. With extended service intervals.
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
No exhaust aftertreatment required such as EGR, DOC or DPF

4H50TI

  • Power
    28.7 - 63.7 kW
  • Torque
    268 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    38.5 - 85.4 hp
  • Torque
    198 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF.  Designed for less regulated markets

4H50TI OPU

  • Power
    28.7 - 63.7 kW
  • Torque
    268 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    38.5 - 85.4 hp
  • Torque
    198 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF. Designed for less regulated markets

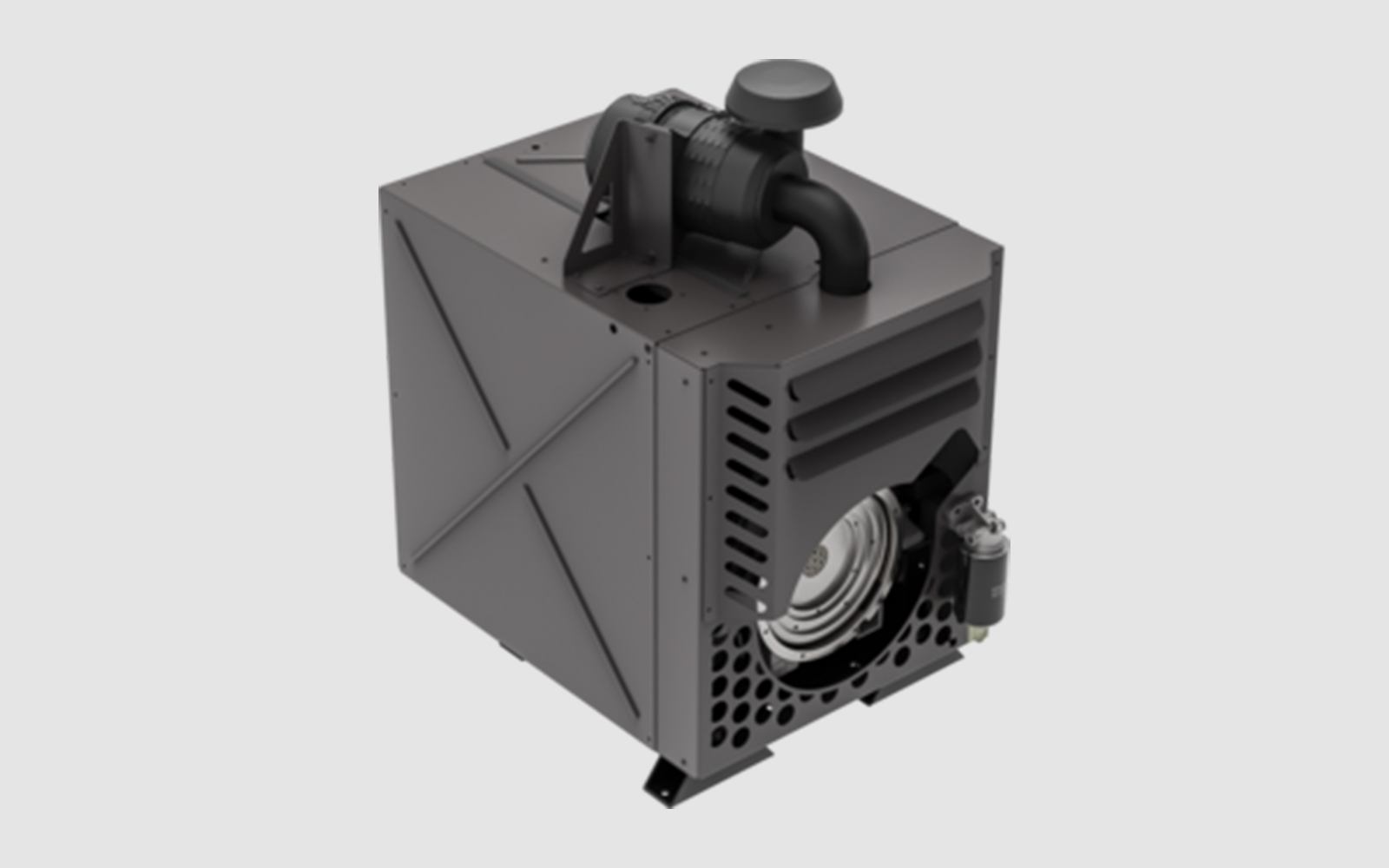

4H50TI Silent Pack

  • Power
    28.7 - 63.6 kW
  • Torque
    268 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
  • Power
    38.5 - 85.4 hp
  • Torque
    198 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage IIIA
No exhaust aftertreatment required such as EGR, DOC or DPF. Designed for less regulated markets

4H50TIC

  • Power
    28.7 - 55.4 kW
  • Torque
    244 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
  • Power
    38.5 - 85.4 hp
  • Torque
    198 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooler

4H50TIC OPU

  • Power
    28.7 - 55.4 kW
  • Torque
    244 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
  • Power
    38.5 - 73.8 hp
  • Torque
    177 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooler

4H50TIC Silent Pack

  • Power
    31.0 - 55.1 kW
  • Torque
    240 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    38.5 - 73.8 hp
  • Torque
    177 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooler

4H50TICD

  • Power
    31.0 - 55.4 kW
  • Torque
    244 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    41.6 - 74.3 hp
  • Torque
    180 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Diesel particulate filter (DPF)

4H50TICD OPU

  • Power
    31.0 - 55.4 kW
  • Torque
    244 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    41.6 - 74.3 hp
  • Torque
    180 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Diesel particulate filter (DPF)

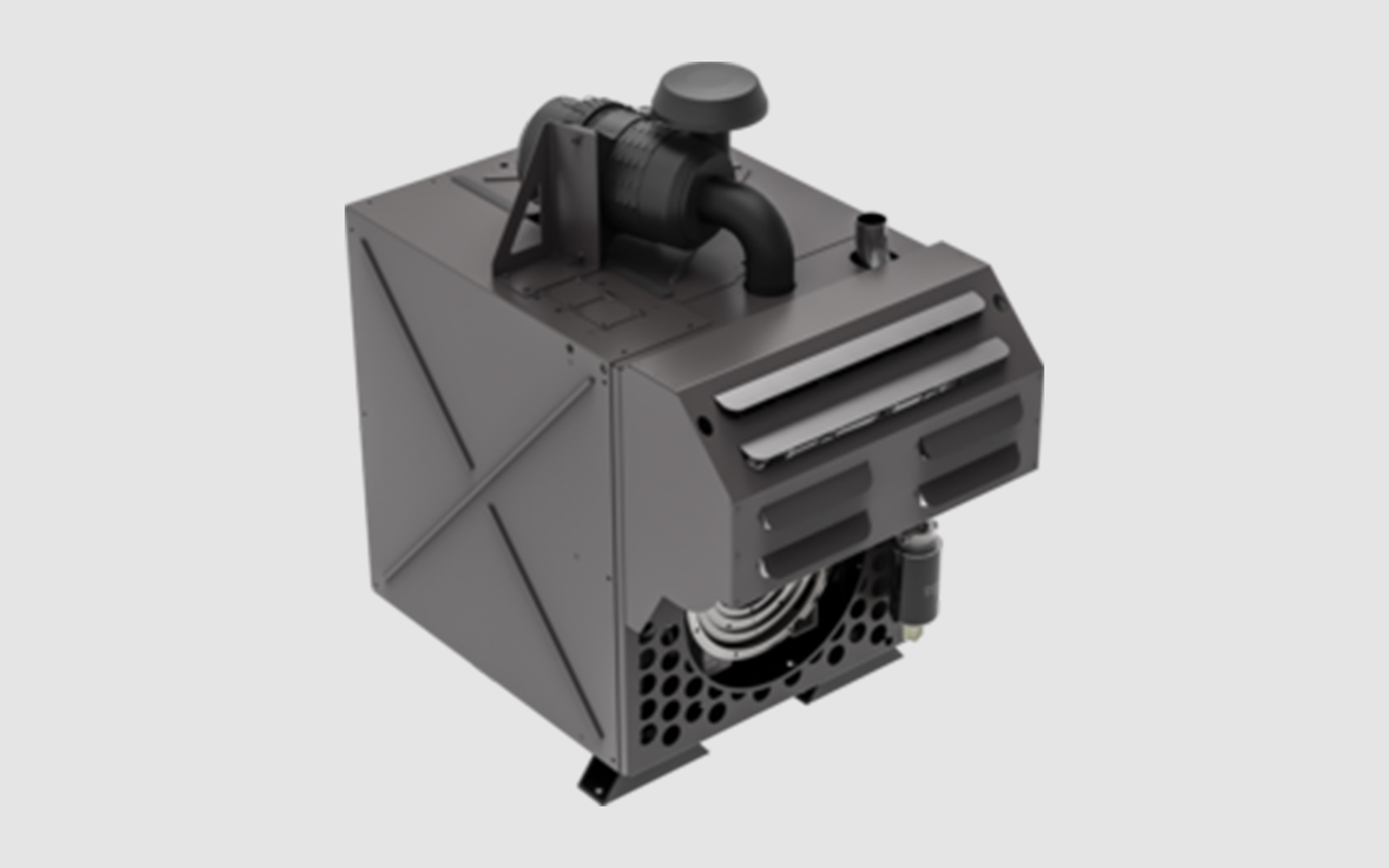

4H50TICD Silent Pack

  • Power
    31.0 - 55.4 kW
  • Torque
    244 Nm
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
  • Power
    41.6 - 74.3 hp
  • Torque
    180 lb-ft
  • Speed
    1500-3000 RPM
  • Type
    Water cooled 4-cylinder 4 stroke diesel engine
  • Exhaust certificate
    EU Stage V and EPA Tier 4 final certified
Exhaust-gas turbocharger with intercooler

Groundbreaking Downsizing Approach

The main goals during development were to reduce size and weight while achieving higher power and good emissions values. The results are very convincing: weight and consumption values are lower than any other engine in this class.

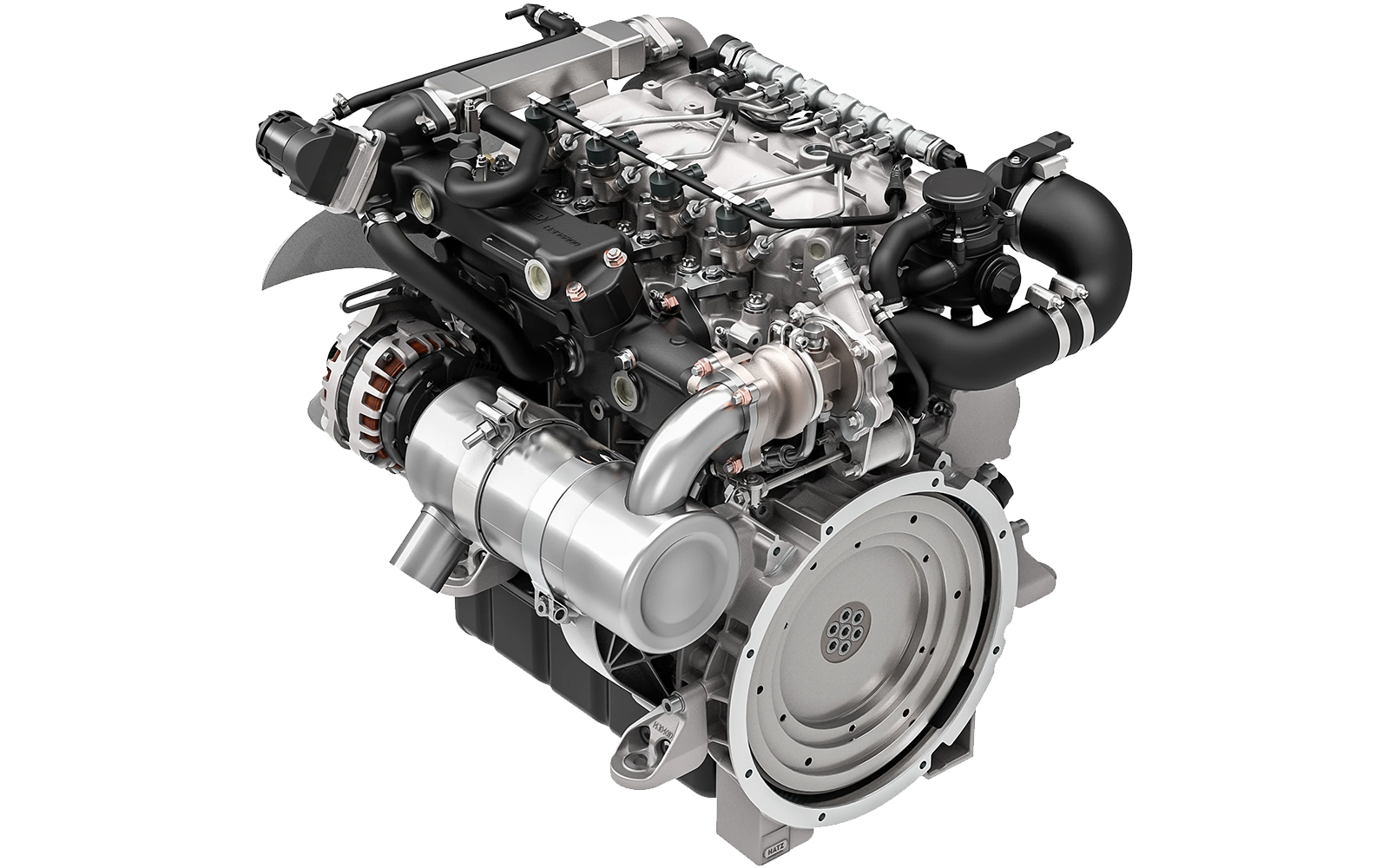

Hatz H-series
Hatz H-series

More Power and Less Weight

The Hatz H-Series is up to 200 pounds lighter than its closest competitor. This weight saving leads not only to a lower power-to-weight ratio but also to a lower demand for raw materials. The engine family meets all emissions requirements in the EU and the USA, that latter even without a particle filter.

Conservatively Innovative Engine for a Long Service Life

All mechanical components were designed and developed with a conservatively innovative approach. Thus, the Hatz H-Series has two valves per cylinder, achieving high efficiency, mechanical robustness, and functional simplicity. This - along with the exclusive use of premium products for all critical components - leads to the durability that Hatz is known for.

Hatz H-series
